UNV-4CH 4MP NVR Hard Wired CCTV system

Uniview’s security camera kits are an affordable way to get started with one of the top video surveillance brands! This kit features 4MP Dual Light cameras – which have both infrared and white light LEDs, giving you added flexibility in how you configure the system.

This cameras from this kit have three illumination modes:

• White Light – The LED turns when the environment is dark, providing supplementary illumination and colour information. This light is visible to anyone in the area.
• Infrared – The IR LED turns on in the dark, providing a black & white image of the scene. This light is nearly invisible to people passing by, minimizing the attention to the camera.
• Dual Light (default) – When the scene is dark, the IR LED will turn on and provide a black & white image of the scene. When ultra motion detection is triggered, the white LED will turn on and provide a colourful image.

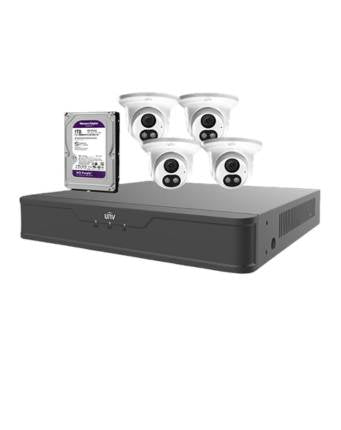

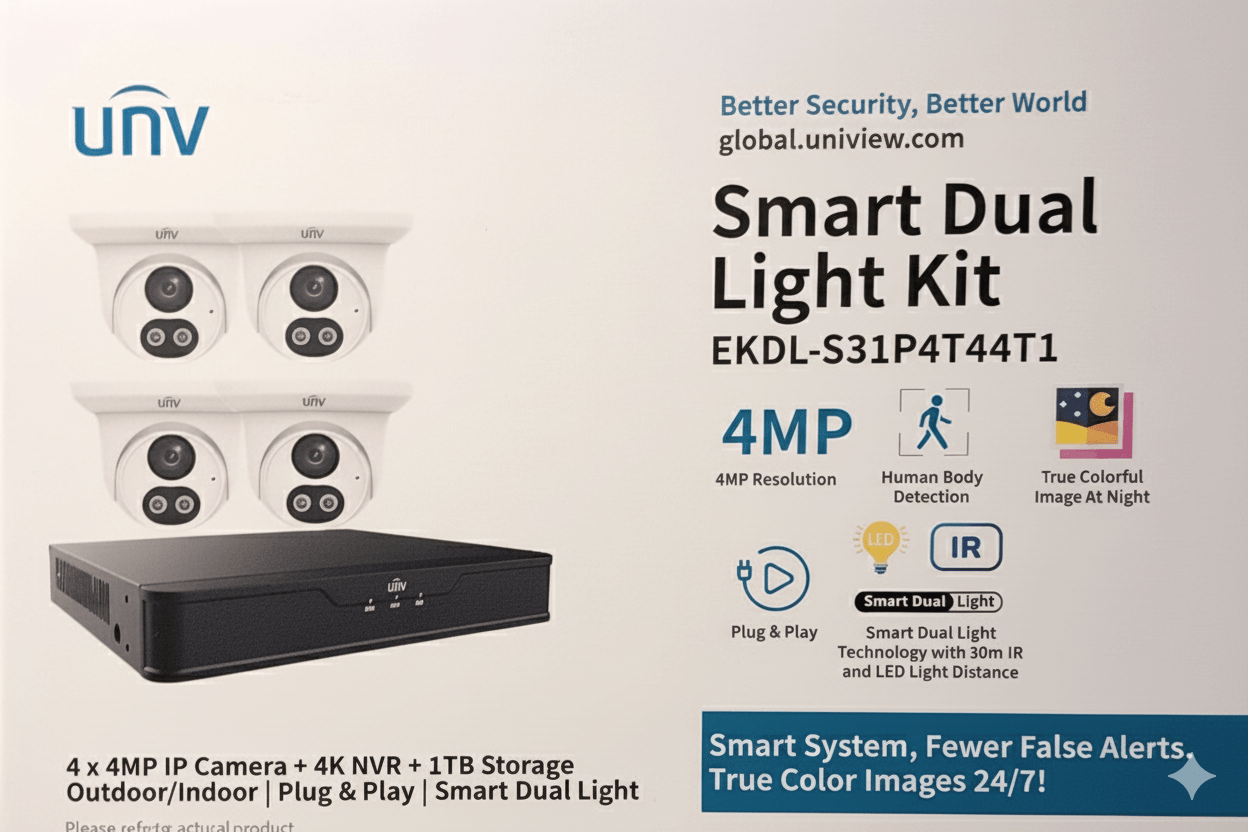

Inside the kit you’ll find a 4ch Uniview NVR with a 1TB HDD and 4x EC-T4F28M-DL Dual Light cameras.

If you need backboxes for these cameras, please contact us.

Features – Uniview 4Ch Dual Light Kit

NVR301-04S3-P4

• Support Ultra 265/H.265/H.264 video formats
• 4-channel input
• Plug & Play with 4 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD
• Support cloud upgrade

EC-T4F28M-DL

• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264, MJPEG
• ROI (Region of Interest)
• ONVIF Conformance
• Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
